Overview - Rear Side Window

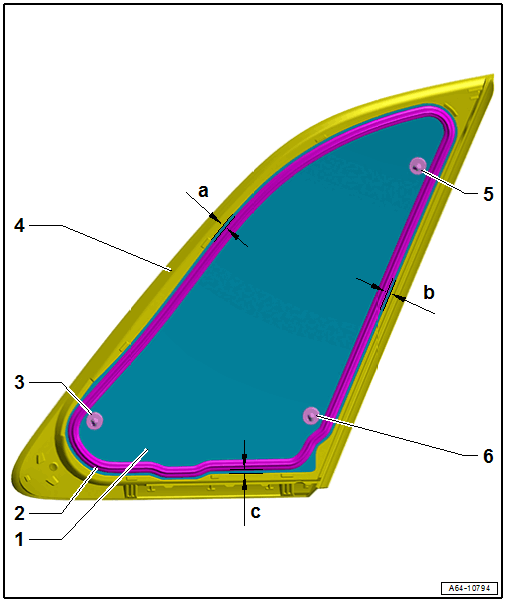

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.

Courtesy of AUDI OF AMERICA, LLC

1. Rear Side Window
   • Removing and Installing. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
2. Adhesive Bead
   • Observe the minimum curing time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
   • Note the different distances to the window edge
     • Dimension -a- = 7.5 mm
     • Dimension -b- = 6.5 mm
     • Dimension -c- = 7.5 mm
   • Adhesive bead thickness. Refer to Adhesive Application: .
3. Locating Pin
   • Is cut through when removing the window
4. Molding
   • On the side window frame
   • Must not be damaged in the visible area
5. Locating Pin
   • Is cut through when removing the window
6. Locating Pin
   • Is cut through when removing the window
