Overview - Instrument Cluster

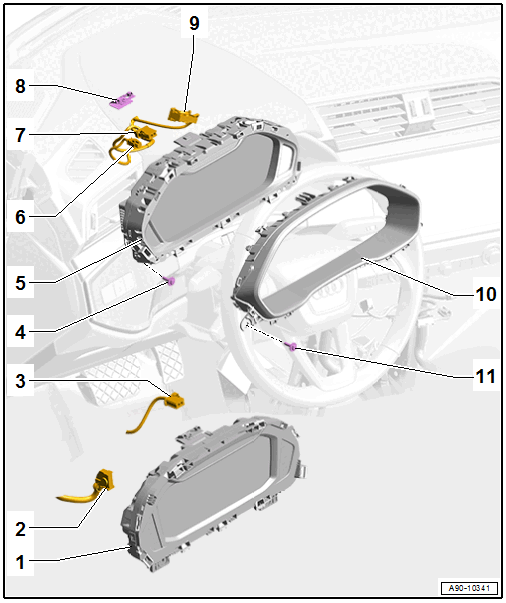

Fig 1: Exploded View Of Instrument Cluster

Courtesy of AUDI OF AMERICA, LLC

Instrument Cluster - Low
- If faulty replace the instrument cluster
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- Removing and installing. Refer to INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING .
Connector
- For the instrument cluster
Fiber Optic Cable Connector
- Seal with Fiber-Optic Repair Set - Connector Protective Caps: VAS6223/9
Bolt
- 2.5 Nm
- Quantity: 2
Instrument Cluster - High
- If faulty replace the instrument cluster
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- Removing and installing. Refer to INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING .
Antenna Wire
- Instrument Cluster - High
Fiber Optic Cable Connector
- Seal with Fiber-Optic Repair Set - Connector Protective Caps: VAS6223/9
Clip
Connector
- For the instrument cluster
Instrument Cluster Trim
- Removing and installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
Bolt
- Tightening specification. Refer to OVERVIEW - INSTRUMENT PANEL .
- Quantity: 2
