Overview - Accelerator Pedal Module

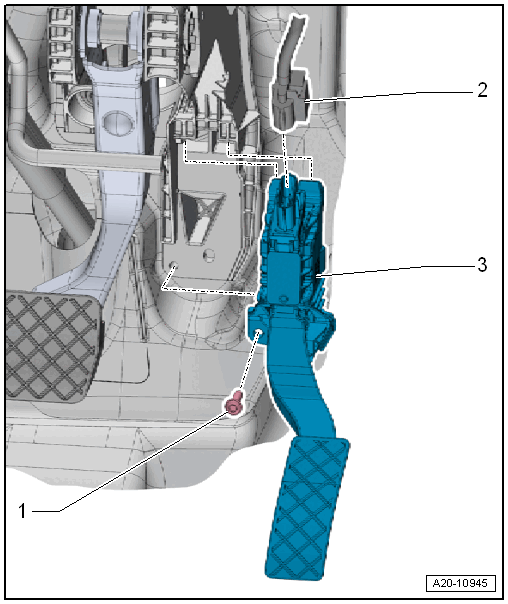

Fig 1: Exploded View Of Accelerator Pedal Mechanism

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 6 Nm
2. Connector
   • Make sure it is attached securely
3. Accelerator Pedal Module -GX2-
   • With
     • Accelerator Pedal Position Sensor -G79-
     • Accelerator Pedal Position Sensor 2 -G185-
   • Checking. Refer to Vehicle Diagnostic Tester.
   • Removing and installing. Refer to Accelerator Pedal Module -GX2-, REMOVING AND INSTALLING .
   • Depending on the engine/transmission combination, an adaptation must be performed after replacing.
   • If a corresponding menu item is in the engine electronics tree structure under "functions", perform the adaptation using the Vehicle Diagnostic Tester.
