ATF Cooler, Removing And Installing: Removing

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- To catch escaping ATF, place a cloth underneath.

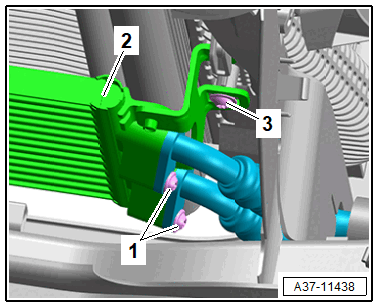

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1- and pull the ATF lines off the ATF cooler -2-.

-- Seal the open lines and connections with clean plugs from the :VAS6122  .

-- Remove the left and right bolt -3-, disengage the ATF cooler from the charge air cooler and remove.
