Garage Door Opener Control Module, Removing And Installing: Removing

-- Remove the rear bumper cover. Refer to REAR BUMPER COVER, REMOVING AND INSTALLING .

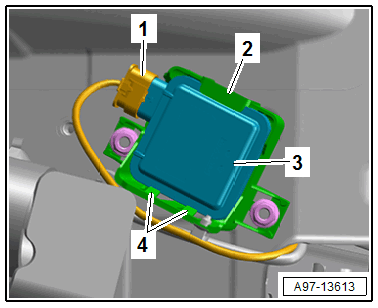

-- Disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers -4-.

-- Remove the control module -3- from the mount -2-.
