Connection For External Multimedia Devices, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the rear center console trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

-- Remove the air duct connecting piece from the rear center console.

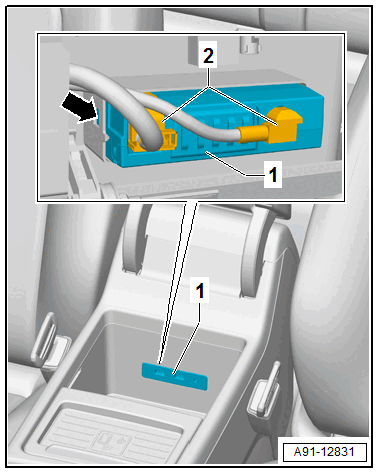

-- Depending on the vehicle equipment, release and disconnect any connectors -2-.

-- Release the retaining tab -arrow- on the external multimedia device connection -1- on both sides.

-- Push the external multimedia device connection -1- toward the rear out of the rear center console storage compartment.
