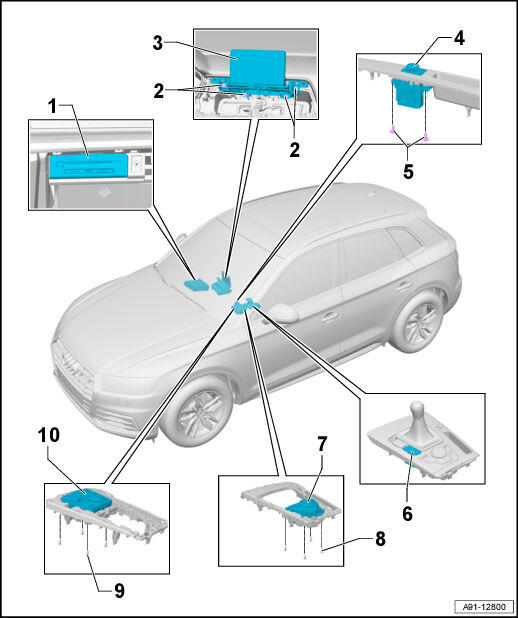

Component Location Overview - Infotainment System

Courtesy of AUDI OF AMERICA, LLC

1. Information Electronics Control Module 1 -J794-
   • In the glove compartment
   • Connector Assignment. Refer to the appropriate Wiring Diagram.
   • Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
2. Bolt
   • 3 Nm
   • Quantity: 4
3. Front Information Display Control Head -J685-
   • Inside the center of the instrument panel
   • Removing and installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
4. Driver Volume Control -E67-
   • In the center console
   • Removing and installing. Refer to Driver Volume Control -E67-, REMOVING AND INSTALLING .
5. Bolt
   • 1.5 Nm
   • Quantity: 2
6. Multimedia Button Module -E817-
   • Only for manual transmissions
   • In the center console
   • Removing and installing. Refer to Multimedia Button Module -E817-, REMOVING AND INSTALLING .
7. Multimedia System Control Head -E380-
   • Only for manual transmissions
   • In the center console
   • Removing and installing. Refer to Multimedia System Control Head -E380-, REMOVING AND INSTALLING, MANUAL TRANSMISSION .
8. Bolt
   • 1.5 Nm
   • Quantity: 4
9. Bolt
   • 1.5 Nm
   • Quantity: 4
10. Multimedia System Control Head -E380-
    • Only for automatic transmissions
    • In the center console
    • Removing and installing. Refer to Multimedia System Control Head -E380-, REMOVING AND INSTALLING, AUTOMATIC TRANSMISSION .
