Multimedia Button Module -E817-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the center console insert. Refer to OVERVIEW - CENTER CONSOLE .

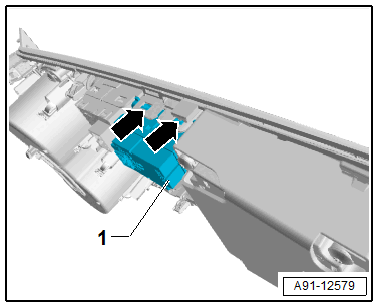

-- Release the straps -arrows- on both sides of the center console insert decorative trim.

Courtesy of AUDI OF AMERICA, LLC

-- Push the Multimedia Button Module -E817- -1- downward out of the center console insert decorative trim.
