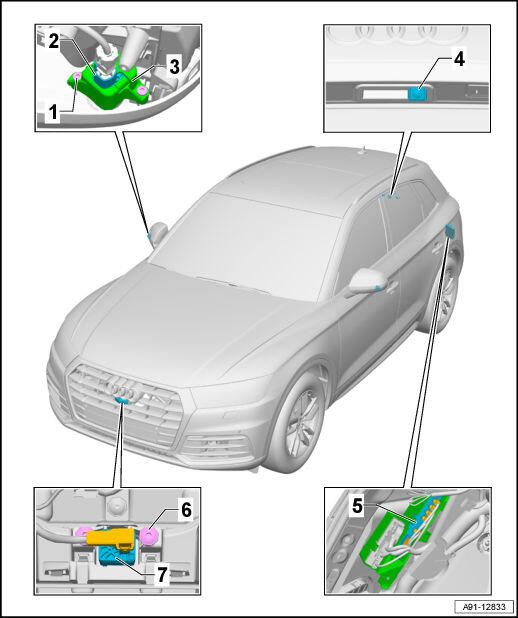

Component Location Overview - Peripheral Camera
- Bolt
- 2 Nm
- Quantity: 2
- Right Peripheral Camera -R245- /Left Peripheral Camera -R244-
- Removing and installing. Refer to RIGHT AND LEFT PERIPHERAL CAMERAS -R244- / -R245-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Bracket
- Rear Peripheral Camera -R246-
- Removing and installing. Refer to Rear Peripheral Camera -R246-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Peripheral Camera Control Module -J928-
- In the luggage compartment on the left rear side
- Connector Assignment. Refer to the appropriate Wiring Diagram.
- Removing and installing. Refer to Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Bolt
- 3 Nm
- Quantity: 2
- Front Peripheral Camera -R243-
- Removing and installing. Refer to Front Peripheral Camera -R243-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
