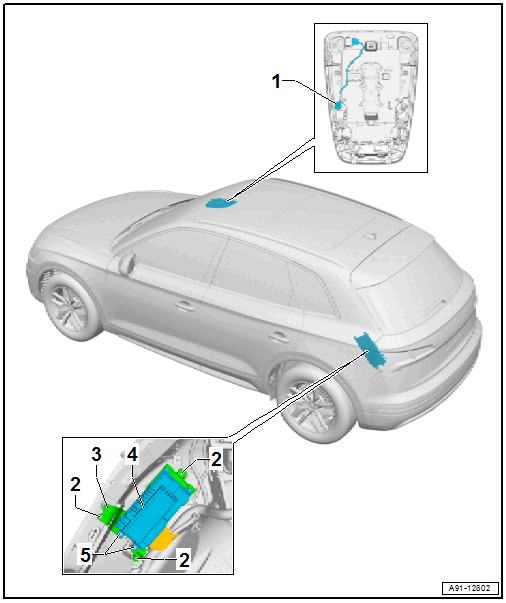

Component Location Overview - Sound System, Microphone, Amplifier

Courtesy of AUDI OF AMERICA, LLC

1. Interior Microphone -R74-, 9VS
   • In the Front Roof Module -WX3-
   • Removing and installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
2. Bolt
   • 3 Nm
   • Quantity: 3
3. Bracket
   • Removing and installing. Refer to CONTROL MODULE/DIGITAL SOUND SYSTEM AMPLIFIER, REMOVING AND INSTALLING .
4. Digital Sound System Control Module -J525-, 9VS
   • In the luggage compartment on the left rear side
   • Connector Assignment. Refer to the appropriate Wiring Diagram.
   • Removing and installing. Refer to CONTROL MODULE/DIGITAL SOUND SYSTEM AMPLIFIER, REMOVING AND INSTALLING .
5. Bolt
   • 6 Nm
   • Quantity: 2
