Left And Right Front Treble Speaker 2 -R220- / -R221-, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the A-pillar trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Release and disconnect the connector -2-.

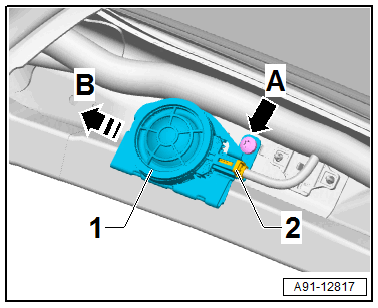

GWWA91-12817Courtesy of AUDI OF AMERICA, LLC

-- Remove the screw -arrow A-.

-- Move the Left Front Treble Speaker 2 -R220- -1- until it stops in the direction of -arrow B-.

-- Remove the Left Front Treble Speaker 2 -R220- -1- from the guide in the upper A-pillar.
