Overview - Instrument Cluster

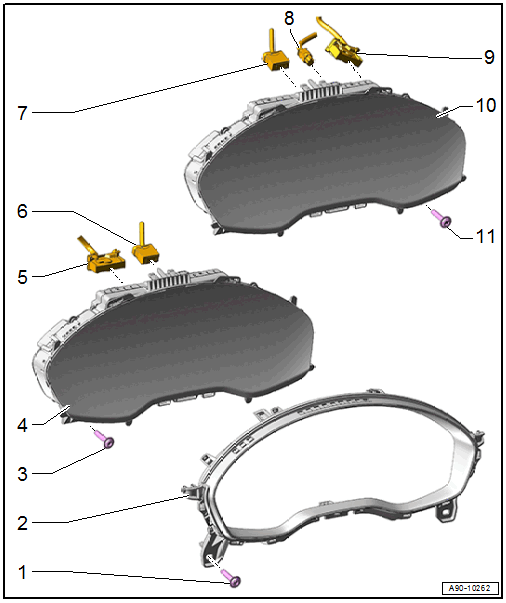

Fig 1: Exploded View Of Instrument Cluster

Courtesy of AUDI OF AMERICA, LLC

Screw
- 1.5 Nm
- Quantity: 2
Instrument Cluster Trim
- Removing and Installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
Screw
- 3 Nm
- Quantity: 2
Instrument Cluster - with Driver Information System
- There are different versions.
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- The instrument cluster must be replaced if there is a malfunction.
- Removing and Installing. Refer to INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING, WITH DRIVER INFORMATION SYSTEM .
Connector
- For the instrument cluster
Fiber Optic Cable Connector
- Seal with Fiber-Optic Repair Set - Connector Protective Caps:VAS6223/9
Fiber Optic Cable Connector
- Seal with Fiber-Optic Repair Set - Connector Protective Caps:VAS6223/9
Antenna Wire
Connector
- For the instrument cluster
Instrument Cluster - Audi virtual cockpit
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- The instrument cluster must be replaced if there is a malfunction.
- Removing and Installing. Refer to INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING, AUDI VIRTUAL COCKPIT .
Screw
- 3 Nm
- Quantity: 2
