Overview - Window Regulator

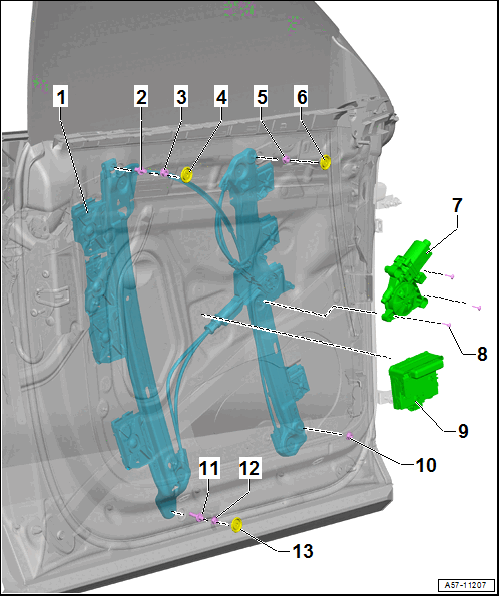

Fig 1: Exploded View Of Window Regulator

Courtesy of AUDI OF AMERICA, LLC

Window Regulator
- Removing and installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
Adjusting Mechanism
- Upper
- For the side adjustment
Nut
- 9 Nm
Plugs
Nut
- 9 Nm
Plugs
Window Regulator Motor
- Driver Window Regulator Motor -V147-, Front Passenger Window Regulator Motor -V148-
- Removing and installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
Bolt
- 3.5 Nm
- Thread cutting
- Position and install by hand
- Quantity: 3
Door Control Module
- Front
  - Driver Door Control Module -J386-, Front Passenger Door Control Module -J387-
- Removing and installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
Nut
- 9 Nm
Adjusting Mechanism
- Lower
- For the side adjustment
Nut
- 9 Nm
Plugs
