ADJUSTER FOR Laser Distance Regulation Control Module -J1122-, REMOVING AND INSTALLING: Installing

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal and note the following:

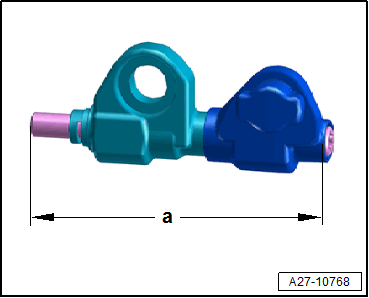

-- Measure the dimension -a- at the adjuster using the : VAS6335  and correct if necessary.

• Dimension -a- = 60.8 mm.
