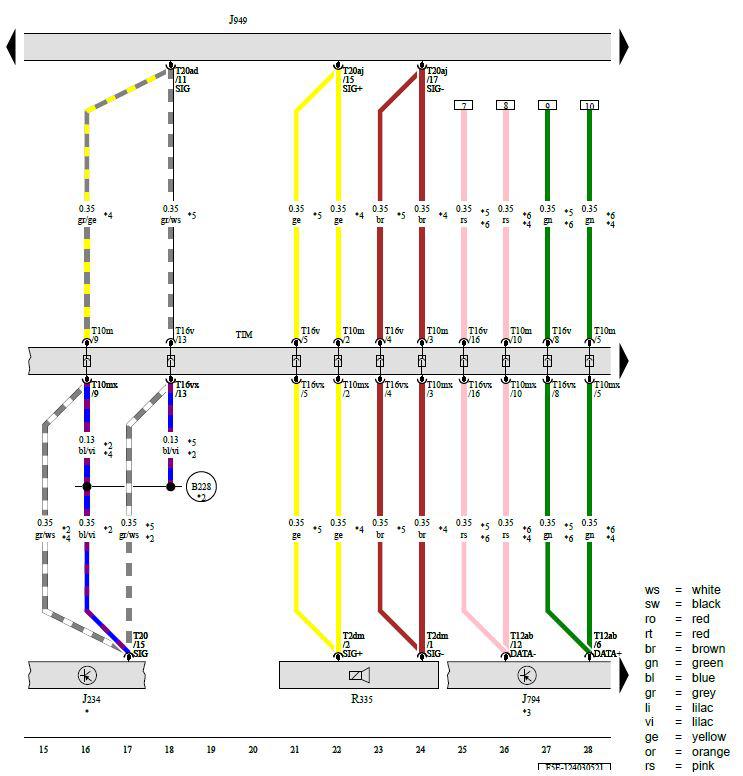

Airbag Control Module, Information Electronics Control Module 1, Control Module for Emergency Call Module and Communication Unit, Emergency Call Module Speaker
J234 - Airbag Control Module
J794 - Information Electronics Control Module 1
J949 - Control Module for Emergency Call Module and Communication Unit
R335 - Emergency Call Module Speaker
T2dm - 2-Pin Connector, Black
T10m - 10-Pin Connector, Black
T10mx - 10-Pin Connector, Black
T12ab - 12-Pin Connector, Green
T16v - 16-Pin Connector, Brown
T16vx - 16-Pin Connector, Brown
T20 - 20-Pin Connector, Yellow
T20ad - 20-Pin Connector, Black
T20aj - 20-Pin Connector, Naturally Cloudy
TIM - Coupling Point in Interior, Center
B228 - Crash Signal Connection (in Interior Wiring Harness)
* - Refer to Applicable Airbag Wiring Diagram
*2 - Depending on Equipment
*3 - Refer to Applicable MMI (Information Electronics) Wiring Diagram
*4 - Through November 2019
*5 - From December 2019
*6 - Ethernet Connection
