Seat Functions Control Module, Removing And Installing: Removing

-- Switch off the ignition.

-- Unscrew the front seat and tip to the rear with the wires attached. Refer to FRONT SEAT, REMOVING AND INSTALLING .

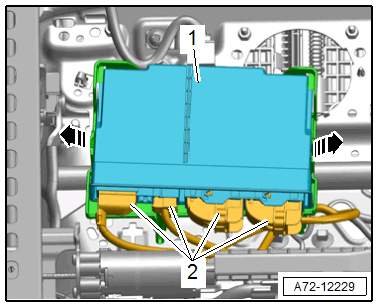

-- Open the tabs in direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the control module -1- from the bracket.

-- Release the connector safety catch and disconnect the connectors -2-.
