Engine, Supporting In Installation Position

Special tools and workshop equipment required

• Engine Support Bridge :10-222A
• Engine Support Bridge - Spindle :10-222A/11
• Engine Support - Supplement Kit :T40093A

Procedure

-- Install the engine cover and heat shield. Refer to ENGINE COVER, REMOVING AND INSTALLING .

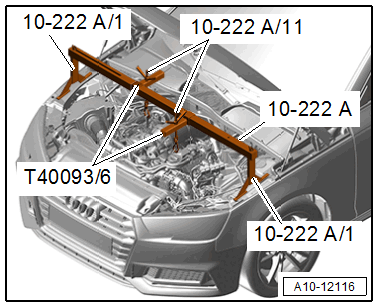

-- Place the :10-222A  on the left and right side of the longitudinal member.

Courtesy of AUDI OF AMERICA, LLC

-- Engage the :10-222A/11  at the left and right on the engine lifting eyes.

-- Tension the engine with the spindles slightly until the engine mount is not under a load.

Assembling

Assemble in the reverse order of removal. Note the following:

-- Install the heat shield and engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
