External Audio Source Connection -R199-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2022 Audi S5 Sportback, 2022 Audi RS 5 Sportback, 2022 Audi A5 Sportback, 2021 Audi S5 Sportback, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the center console storage compartment. Refer to OVERVIEW - CENTER CONSOLE .
-- Release and disconnect the connectors from the External Audio Source Connection -R199-.

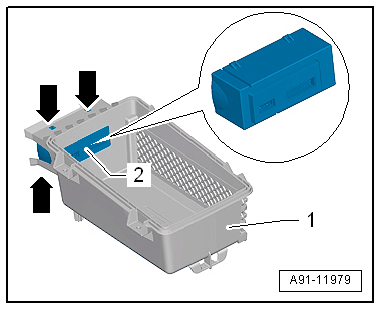

-- Press the tabs -arrows- on the External Audio Source Connection -R199- -2- and remove the External Audio Source Connection -R199- -2- from the storage compartment -1-.
