Component Location Overview - Infotainment System
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2022 Audi S5 Sportback, 2022 Audi RS 5 Sportback, 2022 Audi A5 Sportback, 2021 Audi S5 Sportback, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

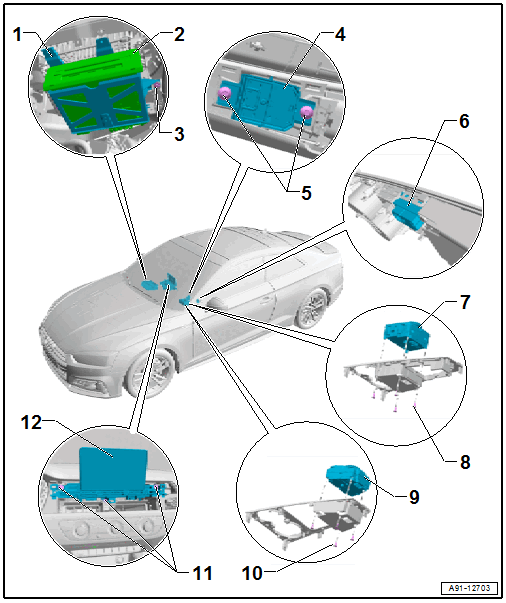

- Bracket
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- The appropriate Wiring Diagram
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Quantity: 2
- Driver Volume Control -E67-
- In the center console
- Removing and Installing. Refer to Driver Volume Control -E67-, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Quantity: 2
- Multimedia Button Module -E817-
- In the center console
- Removing and Installing. Refer to Multimedia Button Module -E817-, REMOVING AND INSTALLING .
- Multimedia System Control Head -E380-
- In the center console
- For automatic transmission
- Removing and Installing. Refer to Multimedia System Control Head -E380-, REMOVING AND INSTALLING, AUTOMATIC TRANSMISSION .
- Bolt
- 2 Nm
- Quantity: 4
- Multimedia System Control Head -E380-
- In the center console
- For manual transmission
- Removing and Installing. Refer to Multimedia System Control Head -E380-, REMOVING AND INSTALLING, MANUAL TRANSMISSION .
- Bolt
- 2 Nm
- Quantity: 4
- Bolt
- 3 Nm
- Quantity: 3
- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- The appropriate Wiring Diagram
- Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
