Infotainment System Display, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2022 Audi S5 Sportback, 2022 Audi RS 5 Sportback, 2022 Audi A5 Sportback, 2021 Audi S5 Sportback, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the front passenger side instrument panel vent. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
With removal from the front passenger side instrument panel vent the bolts are accessible.

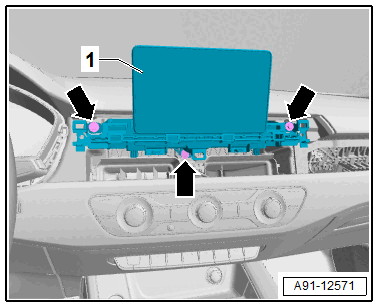

-- Remove the screws -arrows- and remove the Front Information Display Control Head -J685- -1- from the instrument panel.
-- Release and disconnect the connectors.
