Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2022 Audi S5 Sportback, 2022 Audi RS 5 Sportback, 2022 Audi A5 Sportback, 2021 Audi S5 Sportback, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the cover from the left luggage compartment side trim panel. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL .

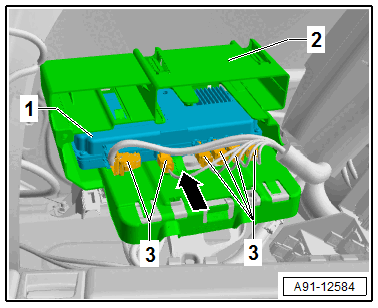

-- Release and disconnect the connectors -3-.
-- Push the catch -arrow- downward.
-- Remove the Peripheral Camera Control Module -J928- -1- to the center from the bracket -2-.
