Left And Right Front Treble Speaker 2 -R220- / -R221-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2022 Audi S5 Sportback, 2022 Audi RS 5 Sportback, 2022 Audi A5 Sportback, 2021 Audi S5 Sportback, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the A-pillar trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

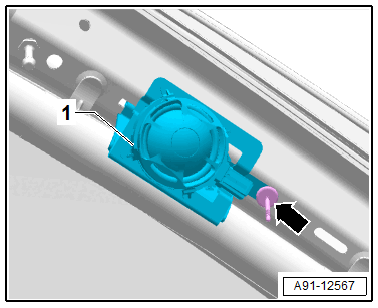

-- Release and disconnect the connector from the Left Front Treble Speaker 2 -R220- -1-.
-- Remove the rivet -arrow- with a suitable drill bit.
-- Remove the Left Front Treble Speaker 2 -R220- -1-.
CAUTION:
Always remove any shavings resulting from the drilling otherwise they may cause corrosion damage later.
If the paint on the door frame gets damaged during drilling, touch-up immediately.
