Seat Belt Microphone Control Module, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2022 Audi S5 Sportback, 2022 Audi RS 5 Sportback, 2022 Audi A5 Sportback, 2021 Audi S5 Sportback, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the left front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Fold back the carpet. Refer to OVERVIEW - FOOTREST AND CARPET .
-- Release and open the E-box cover.
The Seat Belt Microphone Control Module -J886- is only clipped into the E-box.

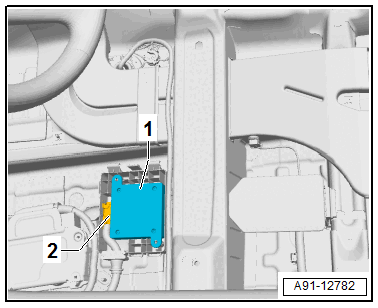

-- Remove the Seat Belt Microphone Control Module -J886- -1- from the E-box.
-- Release and disconnect the connectors -2-.
