Air Quality Package Cartridges, Replacing

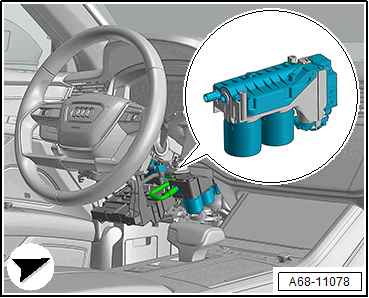

The air quality package canisters are located behind the driver side instrument panel cover.
Removal Procedures:
-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
Procedure:
-- Turn the fragrance canister clockwise and remove.

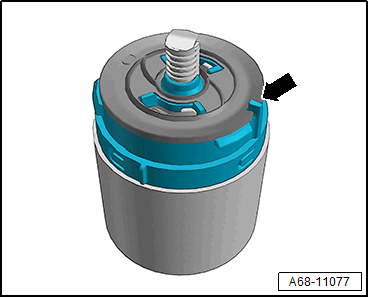

-- Insert new canisters: when inserting, the tab -arrow- must face the front of the vehicle. Install the canister counter-clockwise.
-- Install the instrument panel cover according to the description in the repair information.
NOTE:
Always pay attention to the layout of the respective fragrance locations.
