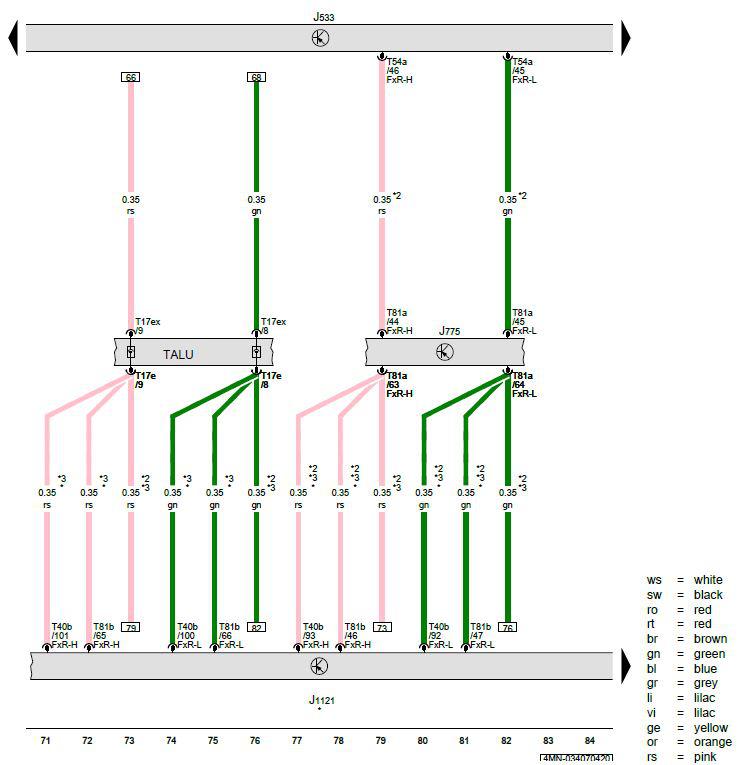

Data Bus on Board Diagnostic Interface, Drivetrain Control Module, Driver Assistance Systems Control Module

Courtesy of AUDI OF AMERICA, LLC

J533 -  Data Bus on Board Diagnostic Interface

J775 -  Drivetrain Control Module

J1121 -  Driver Assistance Systems Control Module

T17e -  17-Pin Connector, Blue

T17ex -  17-Pin Connector, Blue

T40b -  40-Pin Connector, Black

T54a -  54-Pin Connector, Black

T81a -  81-Pin Connector, Black

T81b -  81-Pin Connector, Black

TALU -  Coupling Point on Left A-Pillar, Bottom

* -  For Driver Assistance System

*2 -  For Vehicles with Level Control System

*3 -  Depending on Equipment
