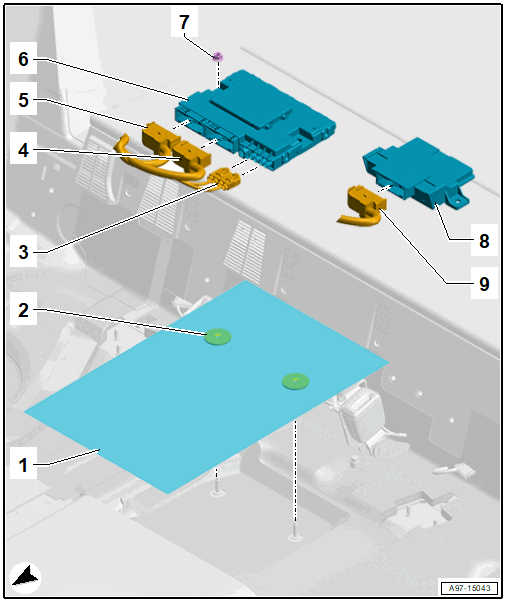

Overview - Data Bus On Board Diagnostic Interface
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Protective Cover
- Replace after removing
- Sealing Washer
- Quantity: 2
- shared component with the protective cover
- Antenna Wire Connector
- Quantity: 2
- Connector
- For the Data Bus On Board Diagnostic Interface -J533- - High
- Connector
- For the Data Bus On Board Diagnostic Interface -J533- - High
- Data Bus On Board Diagnostic Interface -J533- - High
- With Telematics Emergency Battery
- Emergency Battery, Removing and Installing. Refer to CONNECTED GATEWAY, REPLACING EMERGENCY BATTERY .
- Removing and Installing. Refer to Data Bus on Board Diagnostic Interface -J533-, REMOVING AND INSTALLING .
- Always install with the protective cover
- Nut
- Quantity: 2
- There are different versions. Refer to the appropriate Electronic Parts Information.
- Replace the self-locking nuts after removing.
- 5 Nm
- Data Bus On Board Diagnostic Interface -J533- - Low
- Removing and Installing. Refer to Data Bus on Board Diagnostic Interface -J533-, REMOVING AND INSTALLING .
- Always install with the protective cover
- Connector
- For the Data Bus On Board Diagnostic Interface -J533- - Low
