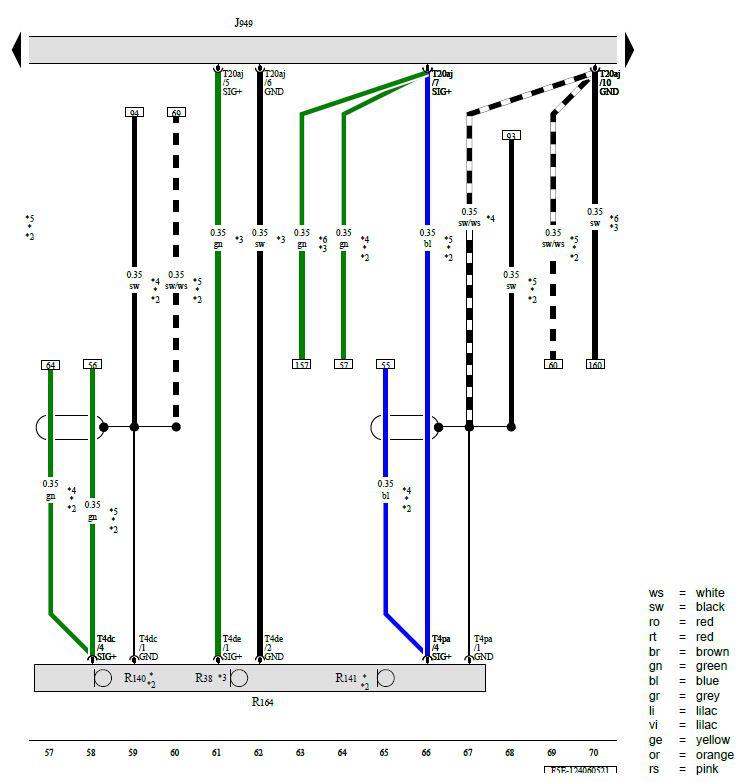

Control Module for Emergency Call Module and Communication Unit, Microphone Unit in Front Roof Module

Courtesy of AUDI OF AMERICA, LLC

J949 -  Control Module for Emergency Call Module and Communication Unit

R38 -  Telephone Microphone

R140 -  Left Front Microphone

R141 -  Right Front Microphone

R164 -  Microphone Unit in Front Roof Module

T4dc -  4-Pin Connector, Gray

T4de -  4-Pin Connector, Black

T4pa -  4-Pin Connector, Blue

T20aj -  20-Pin Connector, Naturally Cloudy

* -  Coupe

*2 -  Sportback

*3 -  For Convertible

*4 -  For LHD Vehicles

*5 -  For RHD Vehicles

*6 -  For Vehicles with Seat Belt Microphone
