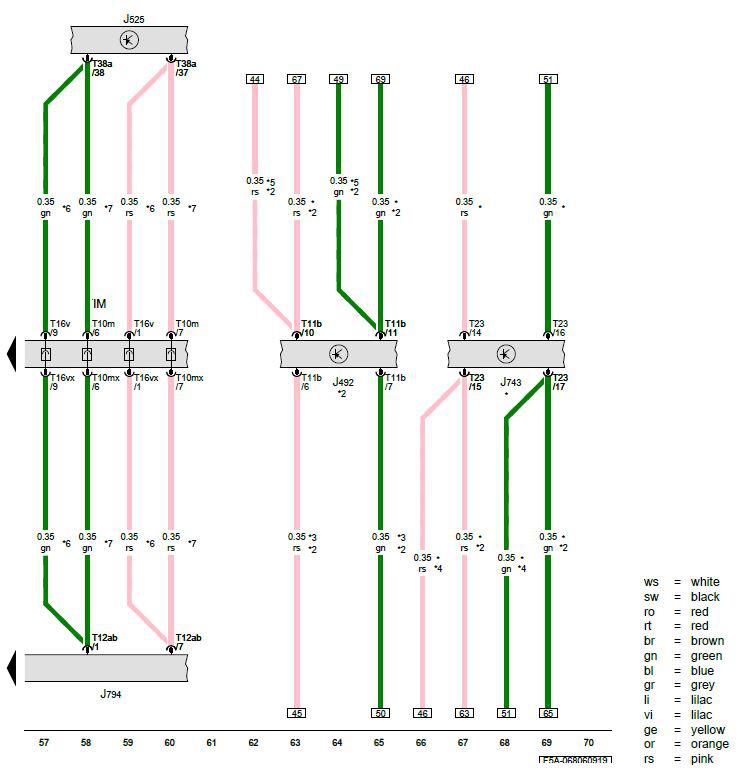

All Wheel Drive Control Module, Digital Sound System Control Module, Dual-Clutch Transmission Mechatronic, Information Electronics Control Module 1

Courtesy of AUDI OF AMERICA, LLC

J492 -  All Wheel Drive Control Module

J525 -  Digital Sound System Control Module

J743 -  Dual-Clutch Transmission Mechatronic

J794 -  Information Electronics Control Module 1

T10m -  10-Pin Connector, Black

T10mx -  10-Pin Connector, Black

T11b -  11-Pin Connector, Black

T12ab -  12-Pin Connector, Green

T16v -  16-Pin Connector, Brown

T16vx -  16-Pin Connector, Brown

T23 -  23-Pin Connector, Black

T38a -  38-Pin Connector, Black

TIM -  Coupling Point in Interior, Center

* -  For Vehicles with Automatic Transmission (DSG)

*2 -  For AWD Vehicles

*3 -  For Vehicles with Automatic Transmission

*4 -  For Vehicles Without All Wheel Drive

*5 -  For Vehicles with a Manual Transmission

*6 -  From December 2019

*7 -  Through November 2019
