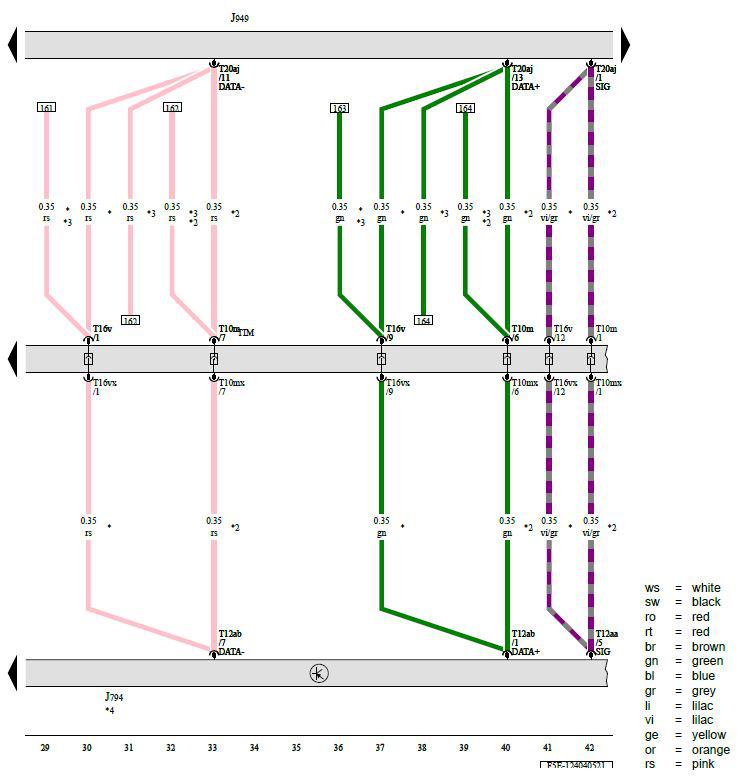

Information Electronics Control Module 1, Control Module for Emergency Call Module and Communication Unit

Courtesy of AUDI OF AMERICA, LLC

J794 -  Information Electronics Control Module 1

J949 -  Control Module for Emergency Call Module and Communication Unit

T10m -  10-Pin Connector, Black

T10mx -  10-Pin Connector, Black

T12aa -  12-Pin Connector, Blue

T12ab -  12-Pin Connector, Green

T16v -  16-Pin Connector, Brown

T16vx -  16-Pin Connector, Brown

T20aj -  20-Pin Connector, Naturally Cloudy

TIM -  Coupling Point in Interior, Center

* -  From December 2019

*2 -  Through November 2019

*3 -  For Vehicles with Bang & Olufsen Sound System

*4 -  Refer to Applicable MMI (Information Electronics) Wiring Diagram
