Engine, Supporting In Installation Position
Special tools and workshop equipment required
- Engine Support Bridge:10-222A
- Engine Support - Supplement Kit:T40093A
Procedure
Risk of injury due to the engine weight shifting.
Parts of the body could be crushed.
- Only support the engine when the transmission and tunnel crossmember are removed.
-- Install the engine cover and heat shield. Refer to ENGINE COVER, REMOVING AND INSTALLING .
-- Remove the left and right cover for the fender. Refer to OVERVIEW - FENDER .

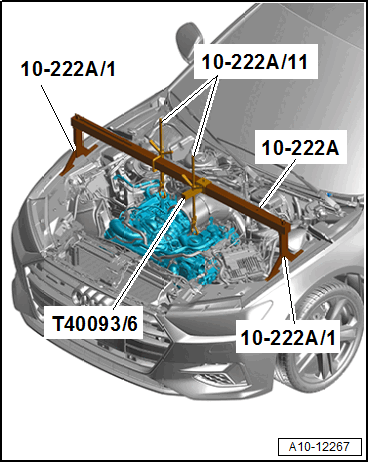

-- Position the :10-222A at the left and right side on the fender bolting edges.
-- Engage the :10-222A/11 at the left and right on the engine lifting eyes.
-- Tension the engine with the spindles slightly until the engine mount is not under a load. (shown on a 3.0L engine).
Assembling
Assemble in the reverse order of removal. Note the following:
-- Install the heat shield and engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
