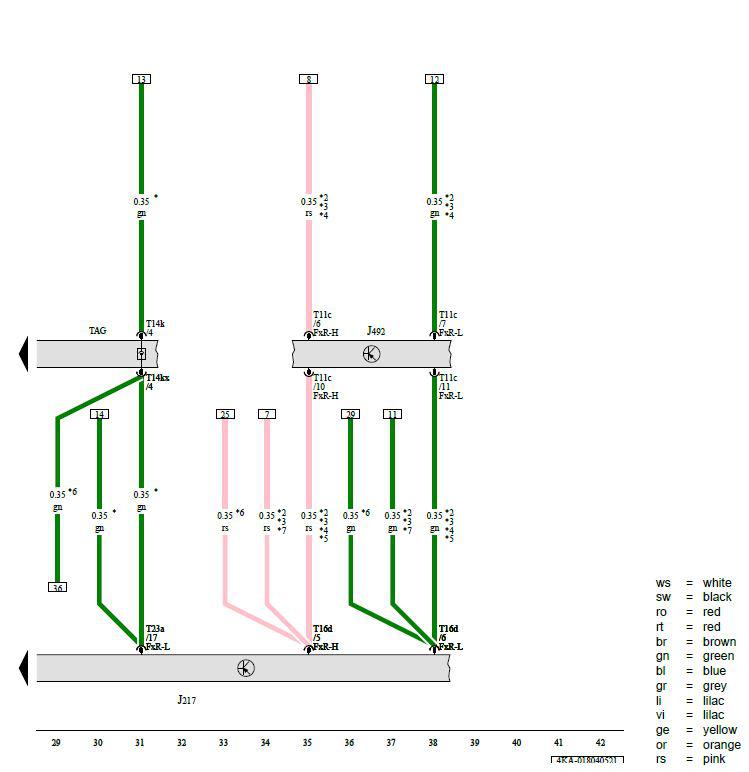

Transmission Control Module, All-Wheel Drive Control Module
J217 - Transmission Control Module
J492 - All-Wheel Drive Control Module
T11c - 11-Pin Connector, Black
T14k - 14-Pin Connector, Black
T14kx - 14-Pin Connector, Black
T16d - 16-Pin Connector, Black
T23a - 23-Pin Connector, Black
TAG - Automatic Transmission Coupling Point
* - Depending on Equipment
*2 - For Vehicles with a 4-Cylinder Engine
*3 - For Vehicles with a 6-Cylinder Engine
*4 - For AWD Vehicles
*5 - Omitted as a Running Change
*6 - For Vehicles with a 8-Cylinder Engine
*7 - For Vehicles without All-Wheel Drive
