Wiring Diagram [DKMB]
›
Wiring Diagrams
›

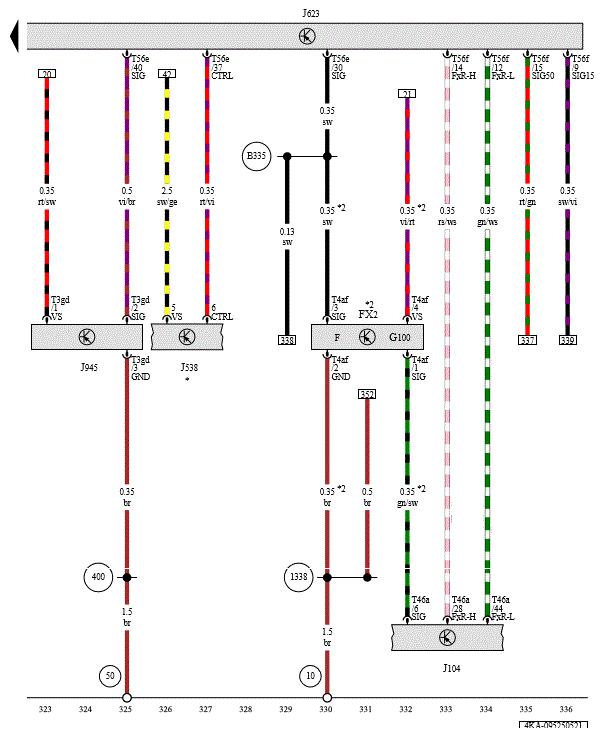

Brake Pedal Switch, Abs Control Module, Fuel Pump Control Module, Engine/Motor Control Module, Exhaust Door Control Unit 2
›
Notes
Brake Pedal Switch, Abs Control Module, Fuel Pump Control Module, Engine/Motor Control Module, Exhaust Door Control Unit 2: Notes
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
