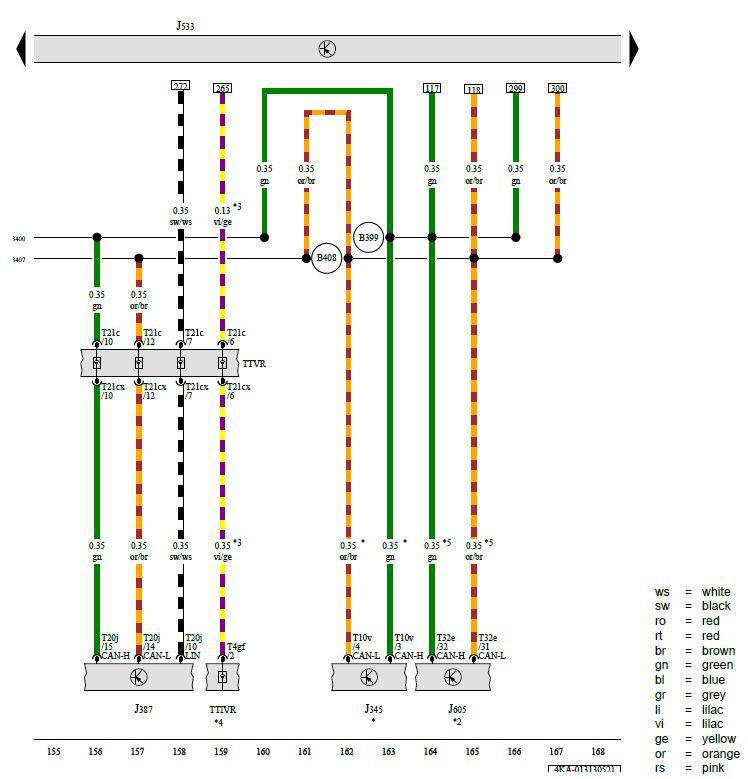

Towing Recognition Control Module, Front Passenger Door Control Module, Data Bus on Board Diagnostic Interface, Rear Lid Control Module

Courtesy of AUDI OF AMERICA, LLC

J345 -  Towing Recognition Control Module

J387 -  Front Passenger Door Control Module

J533 -  Data Bus on Board Diagnostic Interface

J605 -  Rear Lid Control Module

T4gf -  4-Pin Connector, Black

T10v -  10-Pin Connector, Black

T20j -  20-Pin Connector, White

T21c -  21-Pin Connector, Black

T21cx -  21-Pin Connector, Black

T32e -  32-Pin Connector, Naturally Cloudy

TTIVR -  Coupling Point in Right Front Door

TTVR -  Right Front Door Coupling Point

B399 -  Comfort System CAN Bus High Connection 3 (in Main Wiring Harness)

B400 -  Comfort System CAN Bus High Connection 4 (in Main Wiring Harness)

B407 -  Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)

B408 -  Comfort System CAN Bus Low Connection 3 (in Main Wiring Harness)

* -  For Vehicles with Trailer Hitch

*2 -  Refer to Applicable Power Rear Lid Wiring Diagram

*3 -  For Vehicles with Ambient Lighting

*4 -  Refer to Applicable Front Passenger Door Wiring Diagram

*5 -  Optional Equipment
