Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING: Installing

Install in reverse order of removal and note the following:

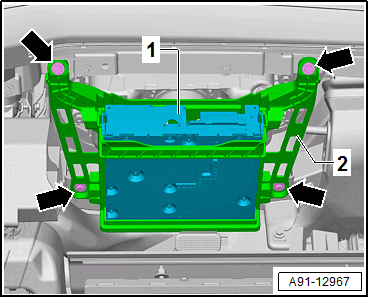

-- First insert the Information Electronics Control Module 1 -J794- into the bracket until it engages.

-- Connect all connectors.

-- Secure the bracket -2- with four screws -arrows-.

Courtesy of AUDI OF AMERICA, LLC
