Component Location Overview - Peripheral Camera

Courtesy of AUDI OF AMERICA, LLC

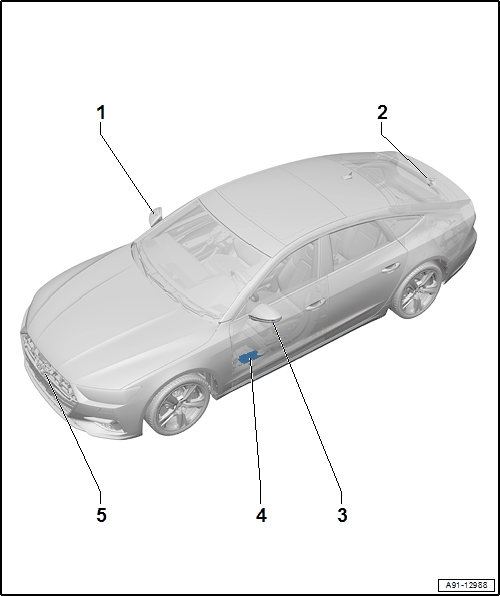

1. Right Peripheral Camera -R245-
   • Removing and Installing. Refer to RIGHT/LEFT PERIPHERAL CAMERAS -R244- / -R245-, REMOVING AND INSTALLING .
   • Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
2. Rear Peripheral Camera -R246-
   • Removing and Installing. Refer to Rear Peripheral Camera -R246-, REMOVING AND INSTALLING .
   • Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
3. Left Peripheral Camera -R244-
   • Removing and Installing. Refer to RIGHT/LEFT PERIPHERAL CAMERAS -R244- / -R245-, REMOVING AND INSTALLING .
   • Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
4. Driver Assistance Systems Control Module -J1121-
   • Under the left front seat
   • Removing and Installing. Refer to DRIVER ASSISTANCE SYSTEMS CONTROL MODULE -J1121-, REMOVING AND INSTALLING .
   • Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
   • Refer to the appropriate Wiring Diagram
5. Front Peripheral Camera -R243-
   • Removing and Installing. Refer to Front Peripheral Camera -R243-, REMOVING AND INSTALLING .
   • Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
