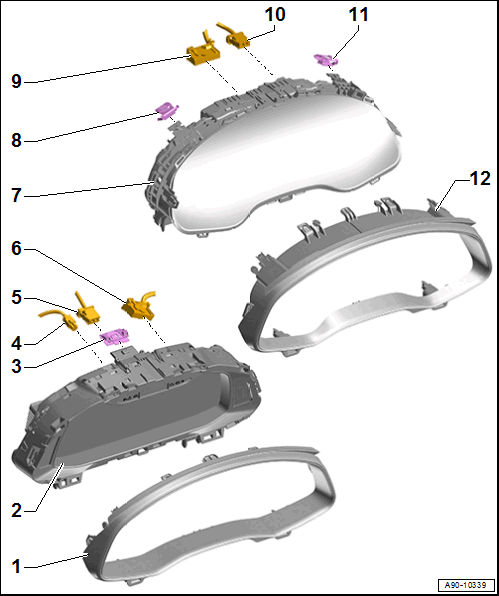

Overview - Instrument Cluster
- Instrument Cluster Trim - High
- Removing and Installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
- Instrument Cluster - High
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- The instrument cluster must be replaced if there is a malfunction.
- Removing and Installing. Refer to INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING .
- Clip
- No replacement part
- Antenna Wire
- Fiber Optic Cable Connector
- Seal with Fiber-Optic Repair Set - Connector Protective Caps:VAS6223/9
- Connector
- For the instrument cluster
- Instrument Cluster - Low
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- The instrument cluster must be replaced if there is a malfunction.
- Removing and Installing. Refer to INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING .
- Clip
- No replacement part
- Connector
- For the instrument cluster
- Fiber Optic Cable Connector
- Seal with Fiber-Optic Repair Set - Connector Protective Caps:VAS6223/9
- Clip
- No replacement part
- instrument Cluster Trim - Low
- Removing and Installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
