Overview - Data Bus On Board Diagnostic Interface

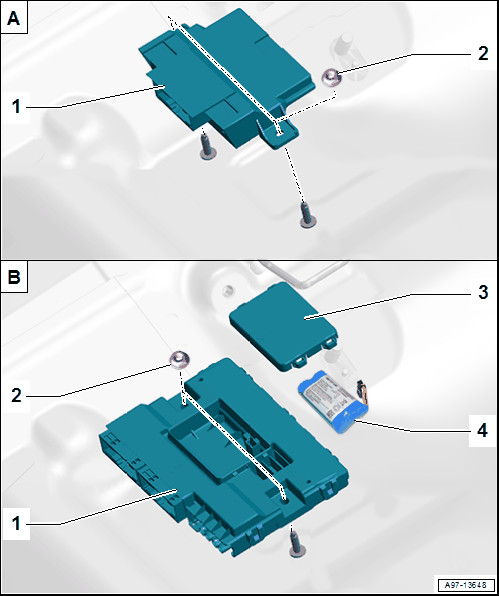

Fig 1: Overview - Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

1. A - Data Bus On Board Diagnostic Interface - Low
2. 1 - Data Bus On Board Diagnostic Interface -J533- - Low
   • Removing and Installing. Refer to Data Bus on Board Diagnostic Interface -J533-, REMOVING AND INSTALLING .
3. 2 - Nut
   • 3.5 Nm
   • Quantity: 2
4. B - Data Bus On Board Diagnostic Interface - High
5. 1 - Data Bus On Board Diagnostic Interface -J533- - High
   • Removing and Installing. Refer to Data Bus on Board Diagnostic Interface -J533-, REMOVING AND INSTALLING .
6. 2 - Nut
   • 3.5 Nm
   • Quantity: 2
7. 3 - Cap
   • For the telematics emergency battery
8. 4 - Telematics Emergency Battery -A16
   • For telematics during emergency
   • Replacing. Refer to Telematics Emergency Battery -A16-, REMOVING AND INSTALLING .
