Component Location Overview - TV System

Courtesy of AUDI OF AMERICA, LLC

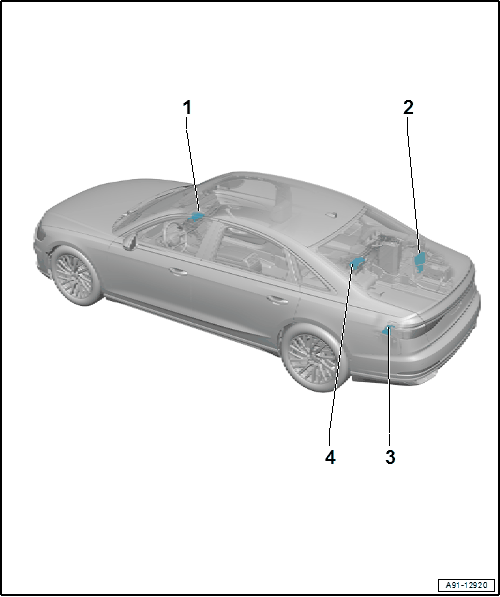

1. DVD Player -R7-
   • In the glove compartment
   • Removing and Installing. Refer to DVD Player -R7-, REMOVING AND INSTALLING .
   • The appropriate Wiring Diagram
2. TV Tuner -R78-
   • in rear right of luggage compartment
   • Removing and Installing. Refer to TV TUNER, REMOVING AND INSTALLING .
   • The appropriate Wiring Diagram
3. TV Card Reader -R204-
   • In the luggage compartment on the left rear side
   • Removing and Installing. Refer to TV CARD READER, REMOVING AND INSTALLING .
   • The appropriate Wiring Diagram
4. DVD Changer -R161-
   • In the rear seat backrest
   • Removing and Installing. Refer to DVD Changer -R161-, REMOVING AND INSTALLING .
   • The appropriate Wiring Diagram
