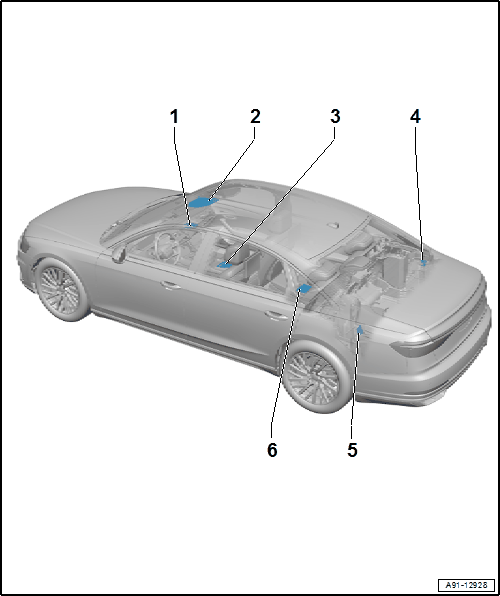

Component Location Overview - Telephone System

Courtesy of AUDI OF AMERICA, LLC

1. Information Electronics Control Module 1 -J794-
   • Behind the glove compartment
   • Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
   • The appropriate Wiring Diagram
2. Front Roof Module -WX3-
   • Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
   • Left Front Microphone -R140-
   • Right Front Microphone -R141-
   • Interior Microphone -R74-
   • Overview. Refer to OVERVIEW - MICROPHONE UNIT .
3. Mobile Device Charger 1 -J1146-
   • In the front center console storage compartment
   • Removing and Installing. Refer to Mobile Device Charger 1 - J1146- REMOVING AND INSTALLING, 9ZV/9ZE/2F1 .
   • The appropriate Wiring Diagram
4. Cellular Telephone Amplifier -R86-
   • in rear right of luggage compartment
   • Removing and Installing. Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING .
   • The appropriate Wiring Diagram
5. Cellular Telephone Amplifier 2 -R328-
   • In the luggage compartment on the left rear side
   • Removing and Installing. Refer to Cellular Telephone Amplifier 2 -R328-, REMOVING AND INSTALLING .
   • The appropriate Wiring Diagram
6. Mobile Device Charger 2 -J1147-
   • In the rear center console storage compartment
   • Removing and Installing. Refer to Mobile Device Charger 2 -J1147-, REMOVING AND INSTALLING, QF6/QF7 .
   • The appropriate Wiring Diagram

     - Telephone Baseplate -R126-

   • Removing and Installing. Refer to Telephone Baseplate -R126- IN REAR, REMOVING AND INSTALLING, QF8 .
   • The appropriate Wiring Diagram
