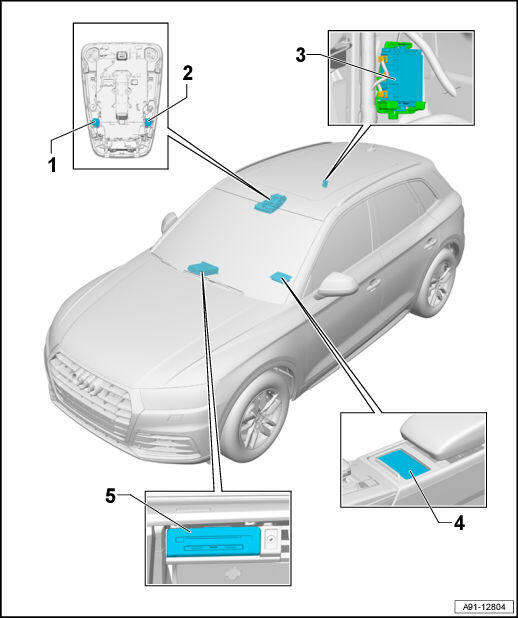

Component Location Overview - Telephone System

Courtesy of AUDI OF AMERICA, LLC

1. Left Front Microphone -R140-
   • In the Front Roof Module -WX3-
   • Microphone unit overview. Refer to OVERVIEW - MICROPHONE UNIT .
   • Removing and installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
2. Right Front Microphone -R141-
   • In the Front Roof Module -WX3-
   • Microphone unit overview. Refer to OVERVIEW - MICROPHONE UNIT .
   • Removing and installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
3. Telephone Baseplate -R126-
   • In the rear luggage compartment on the upper right side
   • Removing and installing. Refer to Telephone Baseplate -R126-, REMOVING AND INSTALLING .
4. Cellular Telephone Amplifier -R86-
   • In the rear center console storage compartment
   • Audi phone box
   • Connector Assignment. Refer to the appropriate Wiring Diagram.
   • Removing and installing. Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING .
5. Information Electronics Control Module 1 -J794-
   • In the glove compartment
   • Connector Assignment. Refer to the appropriate Wiring Diagram.
   • Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
