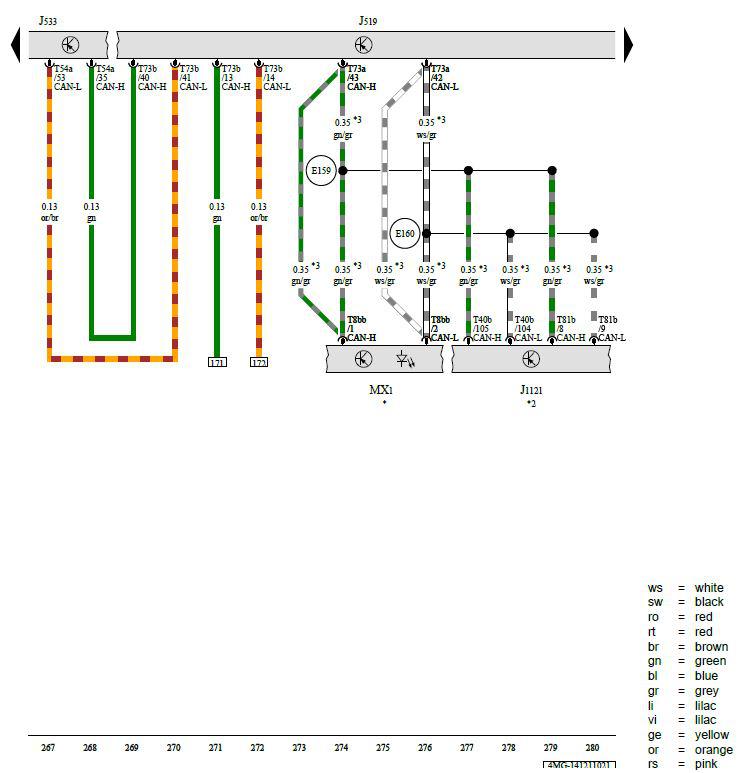

Vehicle Electrical System Control Module, Data Bus on Board Diagnostic Interface, Driver Assistance Systems Control Module, Left Front Headlamp
J519 - Vehicle Electrical System Control Module
J533 - Data Bus on Board Diagnostic Interface
J1121 - Driver Assistance Systems Control Module
MX1 - Left Front Headlamp
T8bb - 8-Pin Connector, Black
T40b - 40-Pin Connector, Black
T54a - 54-Pin Connector, Black
T73a - 73-Pin Connector, Black, Black
T73b - 73-Pin Connector, Black, Naturally Cloudy
T81b - 81-Pin Connector, Black
E159 - Connection 1 (CAN Bus, Vehicle Electrical System Control Module, High)
E160 - Connection 1 (CAN Bus, Vehicle Electrical System Control Module, Low)
* - Refer to Applicable Wiring Diagram for Headlamps
*2 - Refer to Applicable Wiring Diagram
*3 - Depending on Equipment
