Window Guide, Removing And Installing: Installing

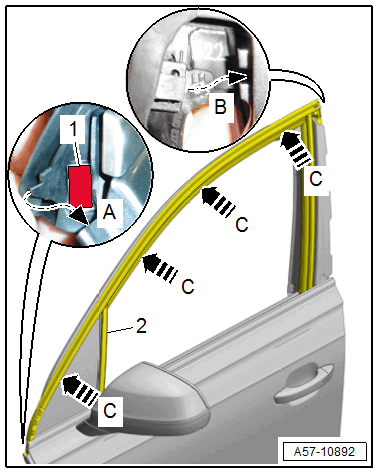

-- Engage the window guide -2- on the rear door flange -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Starting at the back push on the window guide on the door flange -C arrows- and then in the guide on the fixed front door window.

-- Remove the protective film from the adhesive tape -1- and apply the front window guide at the same time the lower raised section of the door panel must engage -arrow A-.

Further installation is performed in reverse order of the removal.
