Component Location Overview - Control Modules

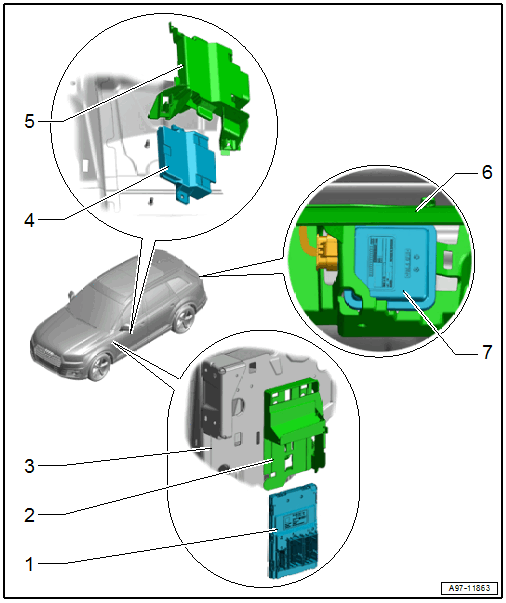

Fig 1: Control Modules

Courtesy of AUDI OF AMERICA, LLC

1. Vehicle Electrical System Control Module -J519-
   • Removing and Installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
2. Mount
   • For the Vehicle Electrical System Control Module -J519-
   • Removing and Installing. Refer to Vehicle Electrical System Control Module -J519- MOUNT, REMOVING AND INSTALLING .
3. Left A-Pillar
4. Data Bus On Board Diagnostic Interface -J533- - Low
   • There are different versions. Refer to the Parts Information.
   • Overview. Refer to OVERVIEW - DATA BUS ON BOARD DIAGNOSTIC INTERFACE .
5. Mount
   • There are different versions. Refer to the Parts Information.
   • For the Data Bus on Board Diagnostic Interface -J533-
6. Mount
   • For rear bumper cover
7. Garage Door Opener Control Module -J530-
   • Removing and Installing. Refer to GARAGE DOOR OPENER CONTROL MODULE, REMOVING AND INSTALLING .
