Mounting Bracket, Removing And Installing: Installing

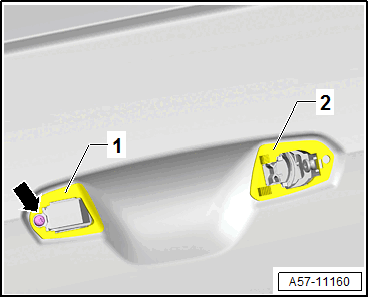

-- Before installing the mounting bracket, check if the backing plates -1 and 2- are inserted correctly.

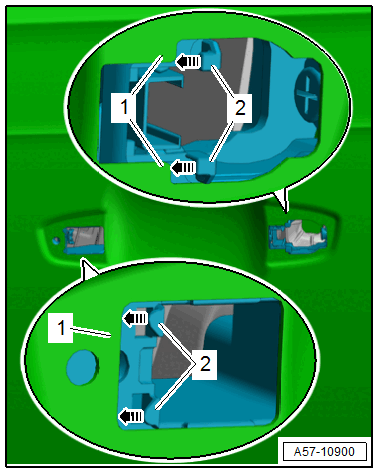

-- Bring the mounting bracket -2- into the installation position and on the outer door panel -1- -arrows-.
Further installation is performed in reverse order of removal, while noting the following:
- Equipped on some models: the wiring harness for the exterior door handle touch sensor/exterior door handle illumination must be routed on the mounting bracket, that points to the outer door panel.
TIP:
If the wiring harness is not routed correctly, there may be noises when opening and closing the door window, because the door window grazes the wiring harness.
