Special Tools

Warning Sign - High Voltage:VAS6649

Fig 1: Identifying High Voltage Warning Sticker With Thunderbolt Symbol

Courtesy of AUDI

Make sure the area around the vehicle is safe before starting any work on the high-voltage vehicle. It is mandatory to place a "Warning! High-Voltage!" sign on the vehicle so that it is visible to all.

Warning Sign - "Do Not Switch On" :VAS6650A

Fig 2: Identifying Warning Sign - Do Not Switch On, Work In Progress VAS6650A

Courtesy of AUDI

Place the "Do not switch on. Work in progress" sign on the vehicle so that it is visible to all after de-energizing the vehicle.

Warning Sign - Battery:VAS6786

Fig 3: Identifying Warning Sign - Battery Storage Area VAS6786

Courtesy of AUDI

If an undamaged high-voltage battery is stored temporarily, mark the storage area with the sign "Warning Sign - Battery".

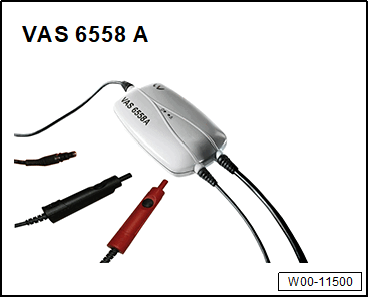

High-Voltage Measuring Mode:VAS6558A

Courtesy of AUDI

Specific measurement and test procedures are performed on high-voltage vehicles using the High-Voltage Measuring Mode:VAS6558A  . In addition to the known functionality of the VAS 6558, the High-Voltage Measuring Mode:VAS6558  includes the potential equalization measurement function (checking the ground connection from high-voltage components) as well as the ohmic continuity test to check vehicle-specific adaptations. Vehicle-specific test adapters are required for adapting the measurement module.

Padlock:T40262/1

Courtesy of AUDI

The safety precautions when working on electrical systems require that the high-voltage system be secured against re-energizing after it has been de-energized. The High-Voltage System Maintenance Connector -TW- (low-voltage service disconnect) can be locked using the lock.

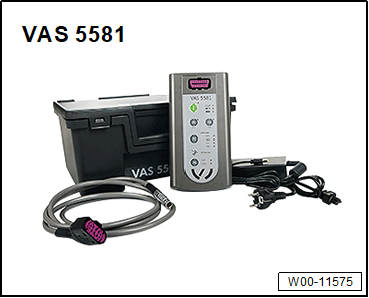

Diagnostic Box:VAS5581

Fig 4: Diagnostic Box VAS5581

Courtesy of AUDI

The Diagnostic Box:VAS5581  is needed to diagnose autonomous high-voltage traction batteries. The high-voltage diagnostic box is supplied with voltage via a power supply or a battery that can be ordered separately.

Audi e-tron Charging System

Courtesy of AUDI

The Audi e-tron charging system is used to charge the vehicle and for Fault Finding. The charging system can be ordered through Audi original parts and does not have a tool number.

1. Charging Cable with Industrial Connector
2. Charging Cable with Household Connector
3. Control Head
4. Charging Cable with Vehicle Connector
