Garage Door Opener Control Module Mount, Removing And Installing: Removing

-- Remove the headlamp. Refer to HEADLAMP, REMOVING AND INSTALLING .

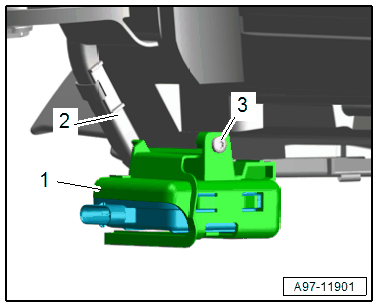

-- Remove the bolt -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the mount -1- from the headlamp housing -2-.
