Vehicle Electrical System Control Module -J519-, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

-- Remove the A-pillar lower trim panel. Refer to Vehicle Interior Trim Panels .

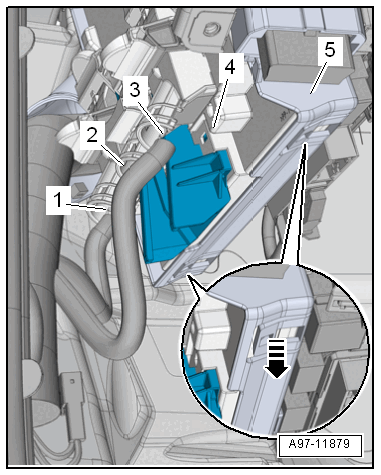

-- Disconnect the connectors -1, 2 and 3-.

-- To disconnect the connector, press the tab -1-, turn the retaining bracket in direction of -arrow- and remove the connector.

Fig 1: Pressing Catch -1-, Turn Retaining Bracket In - Direction Of Arrow For Removal

Courtesy of AUDI OF AMERICA, LLC

-- Release the springs -arrow-, pivot the vehicle electrical system control module -4- out of the bracket -5- and remove it downward.

Courtesy of AUDI OF AMERICA, LLC
