Overview - Window Regulator

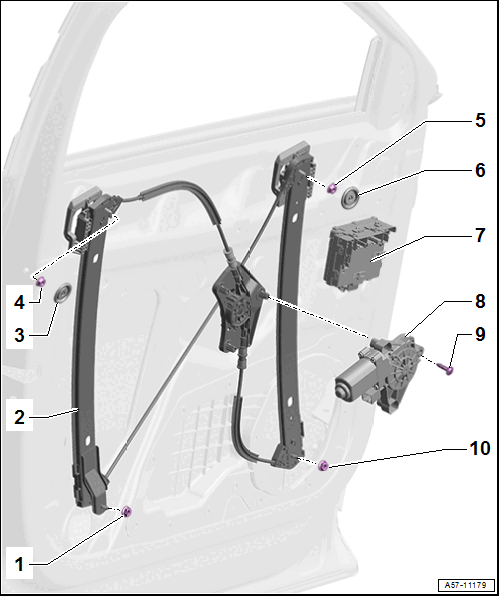

Fig 1: Exploded View Of Window Regulator

Courtesy of AUDI OF AMERICA, LLC

Nut
- 7.5 Nm
Window Regulator
- Removing and Installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
Cap
Nut
- 7.5 Nm
Nut
- 7.5 Nm
Cap
Door Control Module
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CENTRAL LOCKING .
Window Regulator Motor
- Driver Window Regulator Motor -V147-, Front Passenger Window Regulator Motor -V148-
- Removing and Installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
Bolt
- Quantity: 3
- thread cutting
- Position and install by hand
- 3.5 Nm
Nut
- 7.5 Nm
