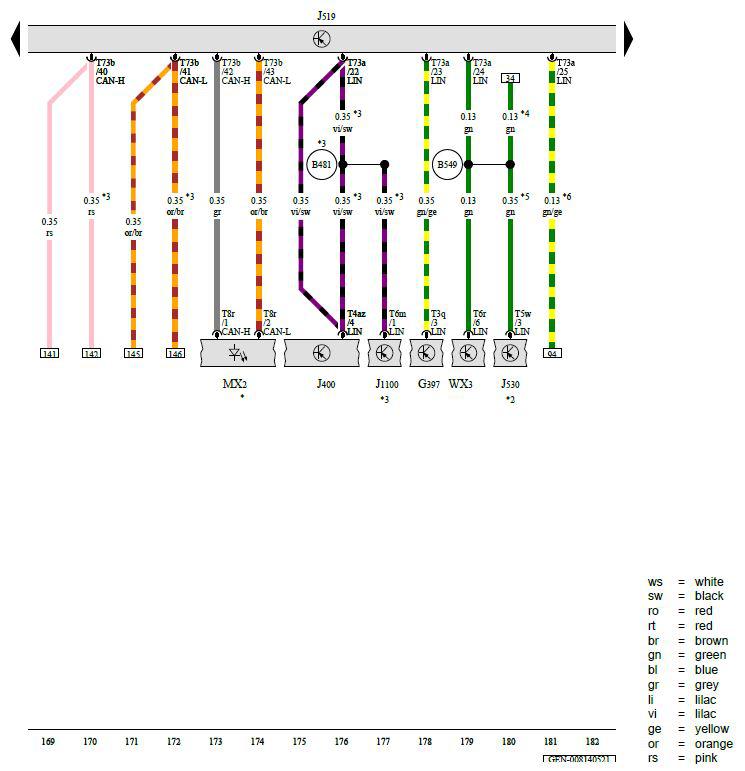

Rain/Light Recognition Sensor, Wiper Motor Control Module, Vehicle Electrical System Control Module, Garage Door Opener Control Module, Windshield Washer Pump Control Module, Right Front Headlamp, Front Roof Module
G397 - Rain/Light Recognition Sensor
J400 - Wiper Motor Control Module
J519 - Vehicle Electrical System Control Module
J530 - Garage Door Opener Control Module
J1100 - Windshield Washer Pump Control Module
MX2 - Right Front Headlamp
T3q - 3-Pin Connector, Black
T4az - 4-Pin Connector, Black
T5w - 5-Pin Connector, Black
T6m - 6-Pin Connector, Black
T6r - 6-Pin Connector, Black
T8r - 8-Pin Connector, Black
T73a - 73-Pin Connector, Black
T73b - 73-Pin Connector, Black
WX3 - Front Roof Module
B481 - Connection 17 (in Main Wiring Harness)
B549 - LIN Bus Connection 2 (in Main Wiring Harness)
* - Refer to Applicable Wiring Diagram for LED Headlamps
*2 - Refer to Applicable Wiring Diagram for the Garage Door Opener
*3 - Optional Equipment
*4 - For Vehicles with Driver Assistance Systems Front Camera
*5 - For Vehicles with Garage Door Opener
*6 - For Vehicles with Seat Ventilation
