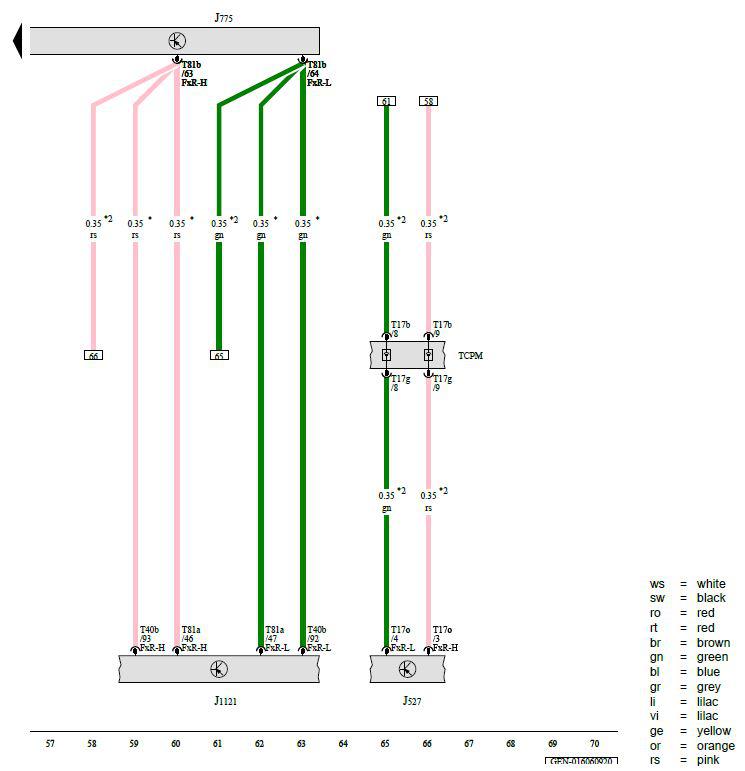

Steering Column Electronics Control Module, Drivetrain Control Module, Driver Assistance Systems Control Module

Courtesy of AUDI OF AMERICA, LLC

J527 -  Steering Column Electronics Control Module

J775 -  Drivetrain Control Module

J1121 -  Driver Assistance Systems Control Module

T17b -  17-Pin Connector, Blue

T17g -  17-Pin Connector, Blue

T17o -  17-Pin Connector, Yellow

T40b -  40-Pin Connector, Black

T81a -  81-Pin Connector, Black

T81b -  81-Pin Connector, Black

TCPM -  Coupling Point on Instrument Panel, Center

* -  For Driver Assistance System

*2 -  Depending on Equipment
